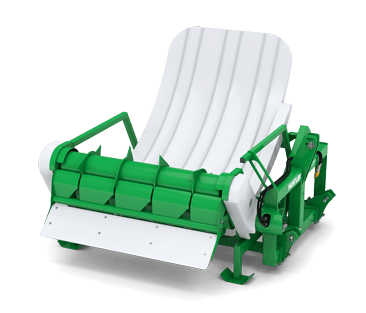

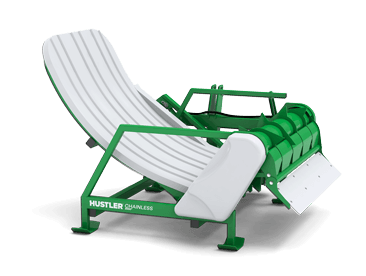

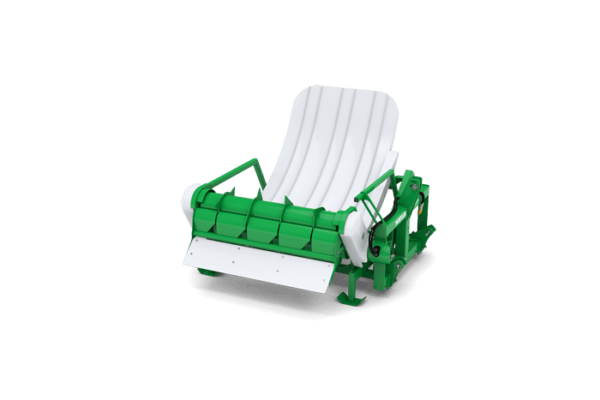

Chainless 2000 Round & Square Bale Feeder

YES! Chainless 2000 is back, thanks to farmer feedback. Now Series 4.

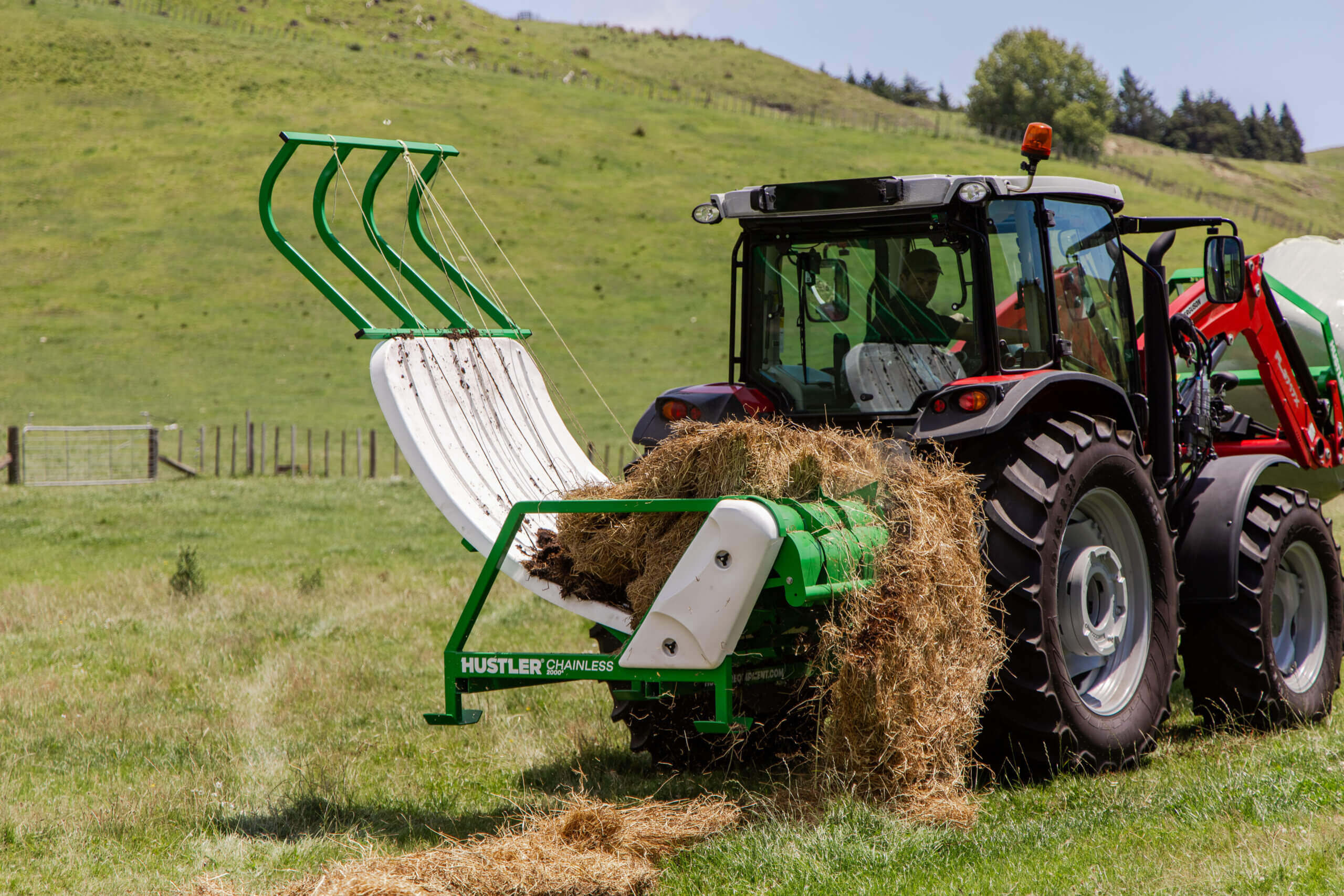

The most compact self-loading Chainless bale feeder can be run on 3 Point Hitch or loaders mounted and feeds any type of bale.

Chainless 20004

Maximum Versatility. Minimum Weight.

The new series 4, Chainless 2000 self-loading, round and square bale feeder builds upon the proven performance of the original Chainless 2000 retaining the fundamentals in a compact package, an economical choice for smaller tractors and loaders 60hp+ with some key improvements that further enhance durability and versatility.



3 Reasons to Choose a Chainless 2000

Hustler round and square bale feeding

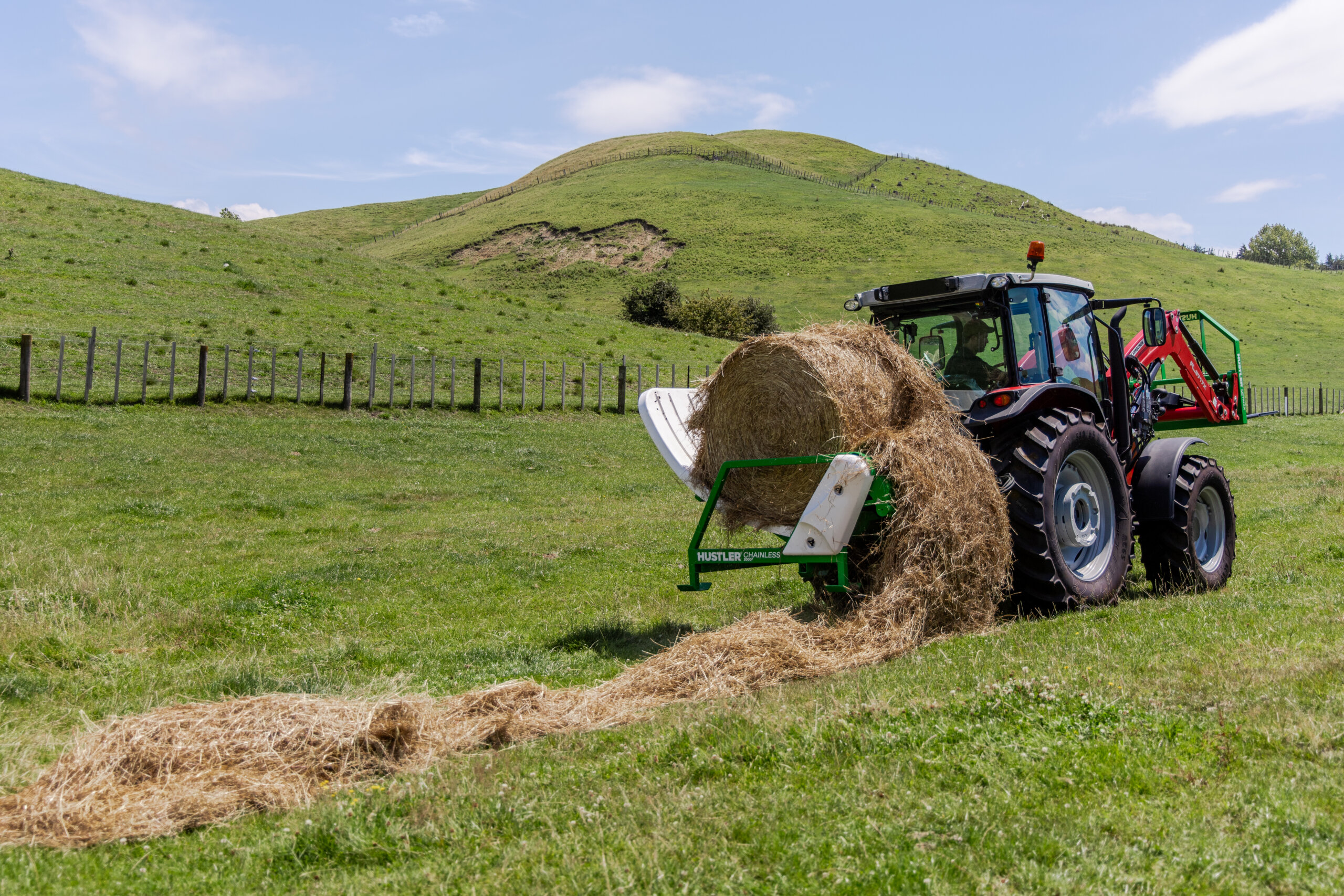

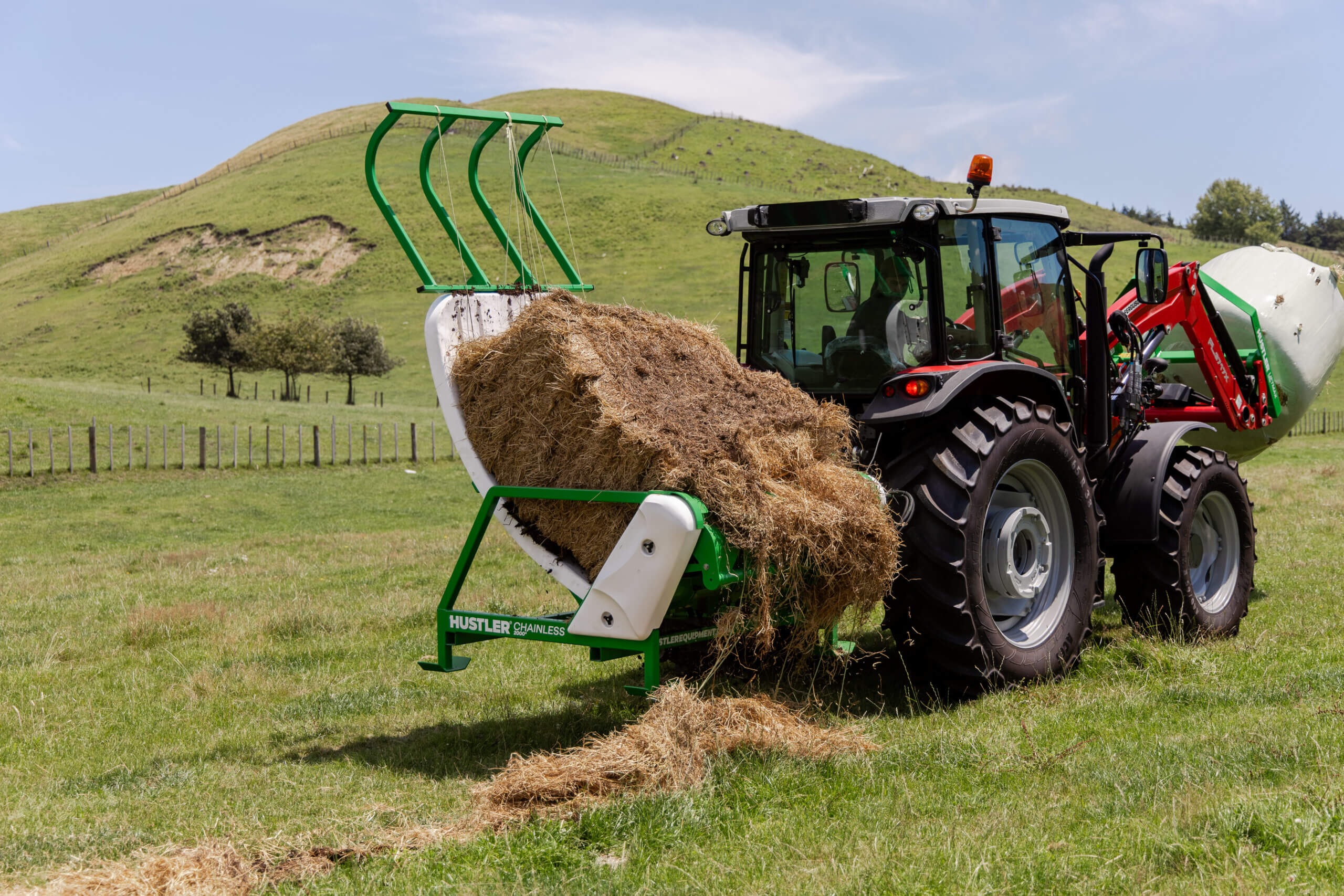

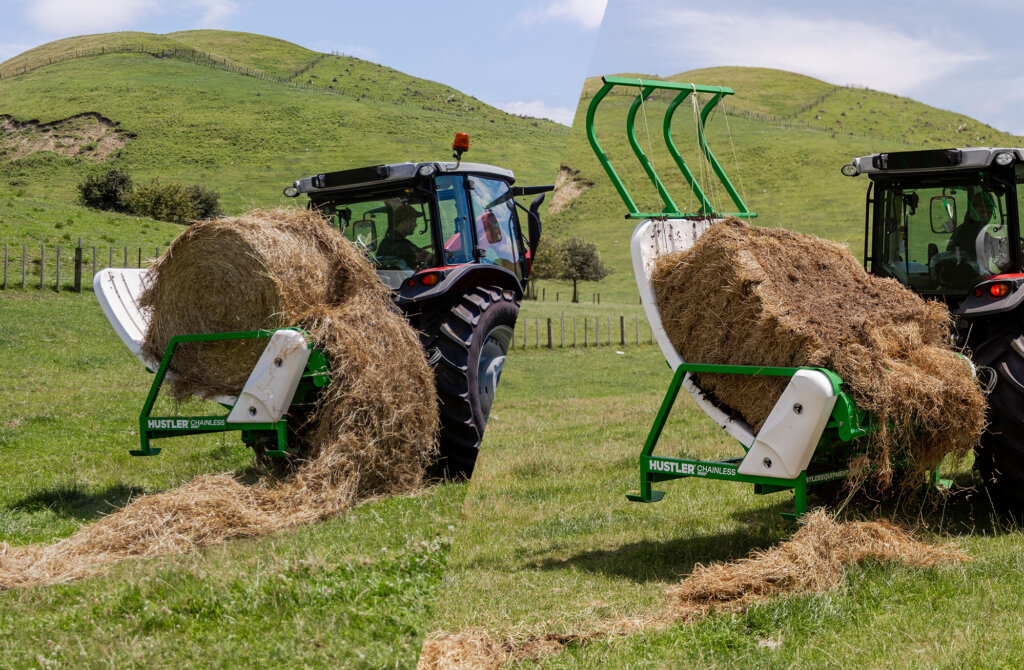

1. Feeds round and square bales with ease

The versatile Chainless system has been developed over more than 20 years of testing and refinement to allow farmers & ranchers to feed all bale shapes and forage types with just one machine. Round, square, silage, hay, straw bales.

The unique 3:1 low-speed teasing ratio rotors stretches hay back into its natural form prior to baling making your hay go further and the adjustable platform makes pulling apart even the tightest packed bales a breeze.

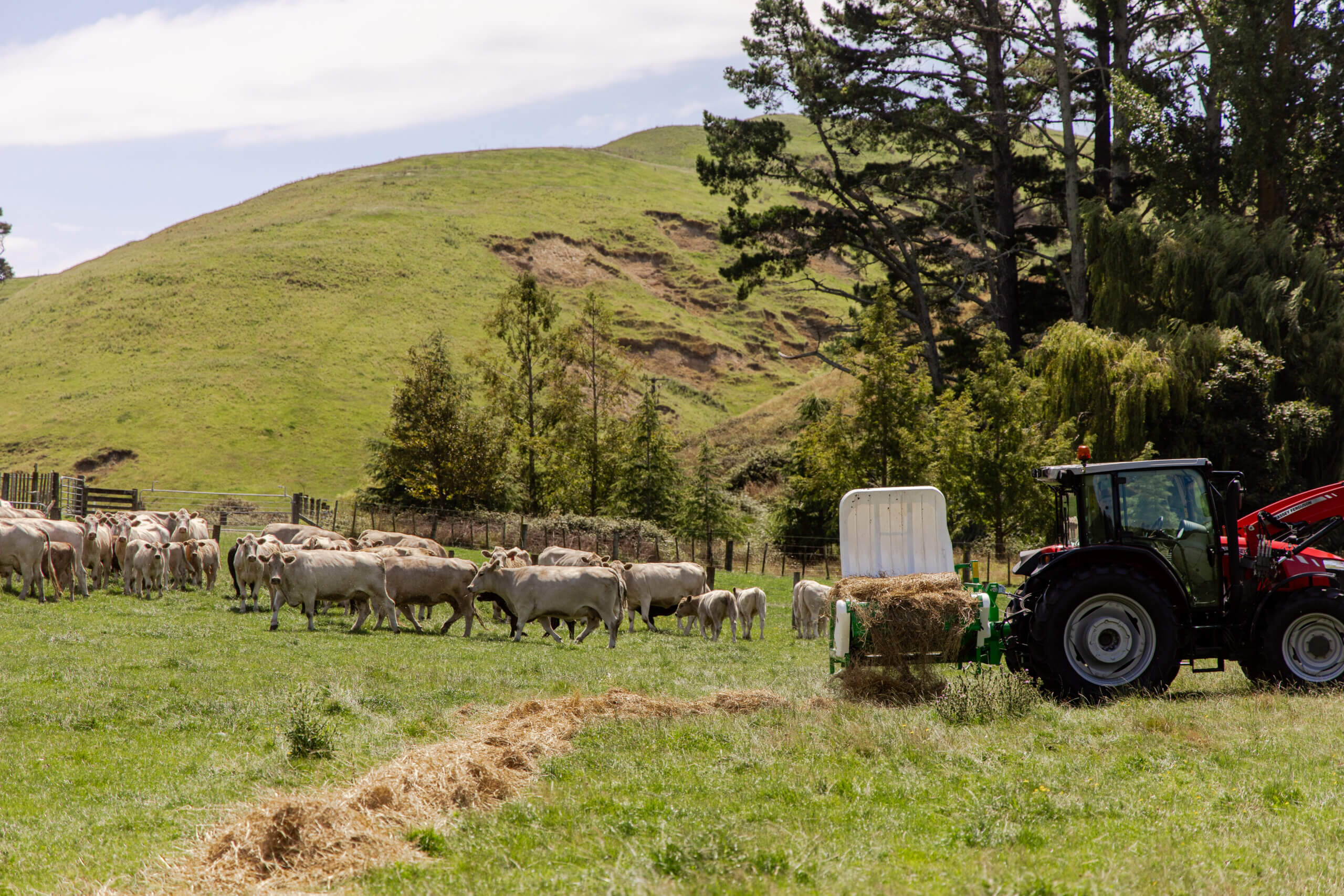

2. Quiet and reliable operation

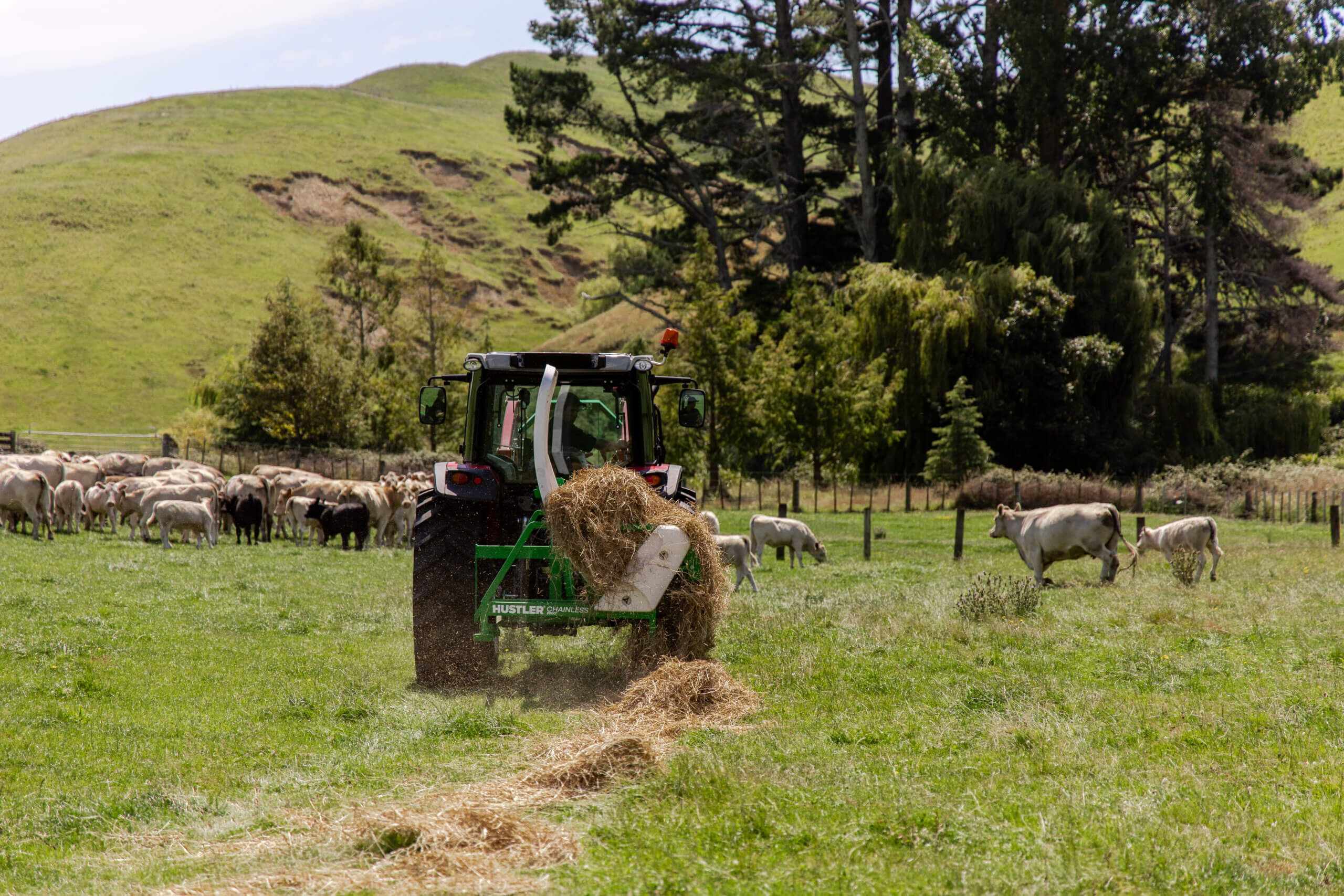

Say goodbye to troublesome feed chains! The Chainless machine features 2 reliable feeding rotors for ultra-low-maintenance, and noise-free feeding ensuring your cattle aren’t spooked during feeding.

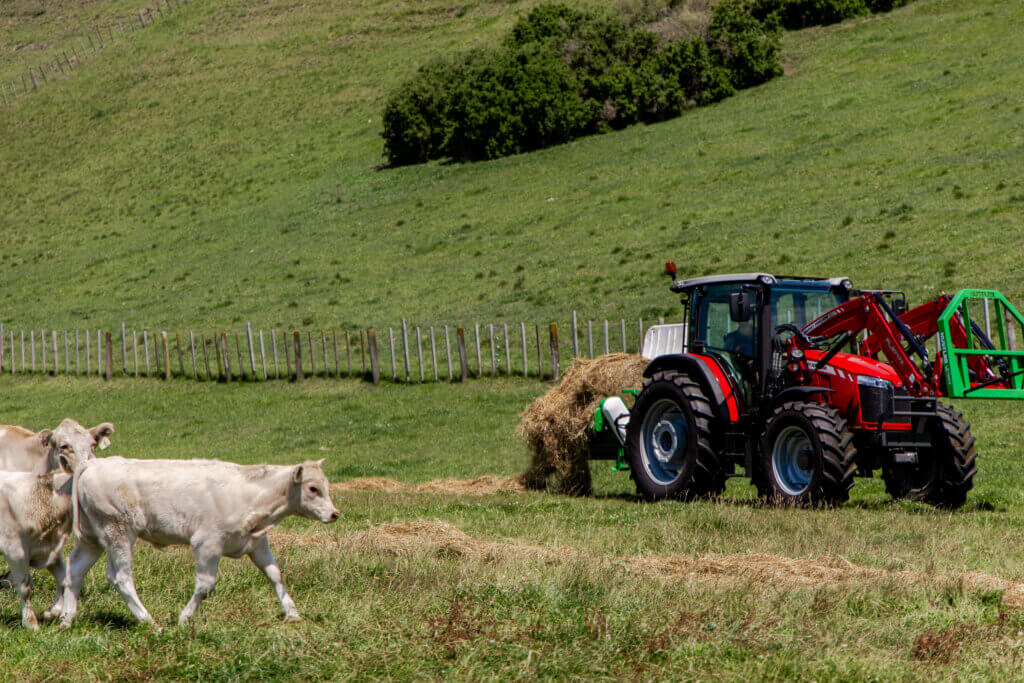

IMG 3009

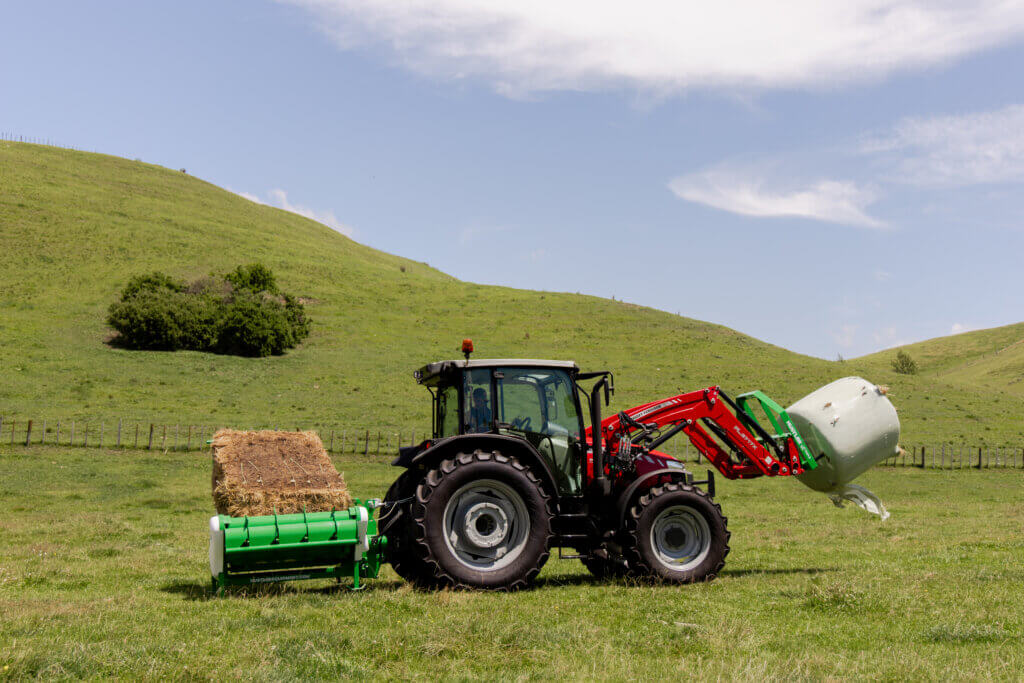

IMG 2476

3. Design improvements:

We’ve taken years of feedback and parts sales back into the design process to make an even more reliable machine, worthy of our 5 Year NO BULL warranty.

So what is new? Improvements include:

    1. NEW dual bearing drive system instead of bushes for ultimate reliability
    2. NEW platform pivot design, again using bearings instead of bushes for reliability and even lower maintenance
    3. Thicker drum tubes for longer life, especially with acidic feeds
    4. Bolt-on removable lower hitch mounts which allow the feeder to be either front-end-loader mounted or on the 3PH of your tractor
    5. Replaceable forged bale spears for long life and easy replacement

The Chainless 2000 Series 4 Explained

Walk Around the Chainless 2000

Why Choose Chainless?

How to set up & run a Chainless 2000

Key Features

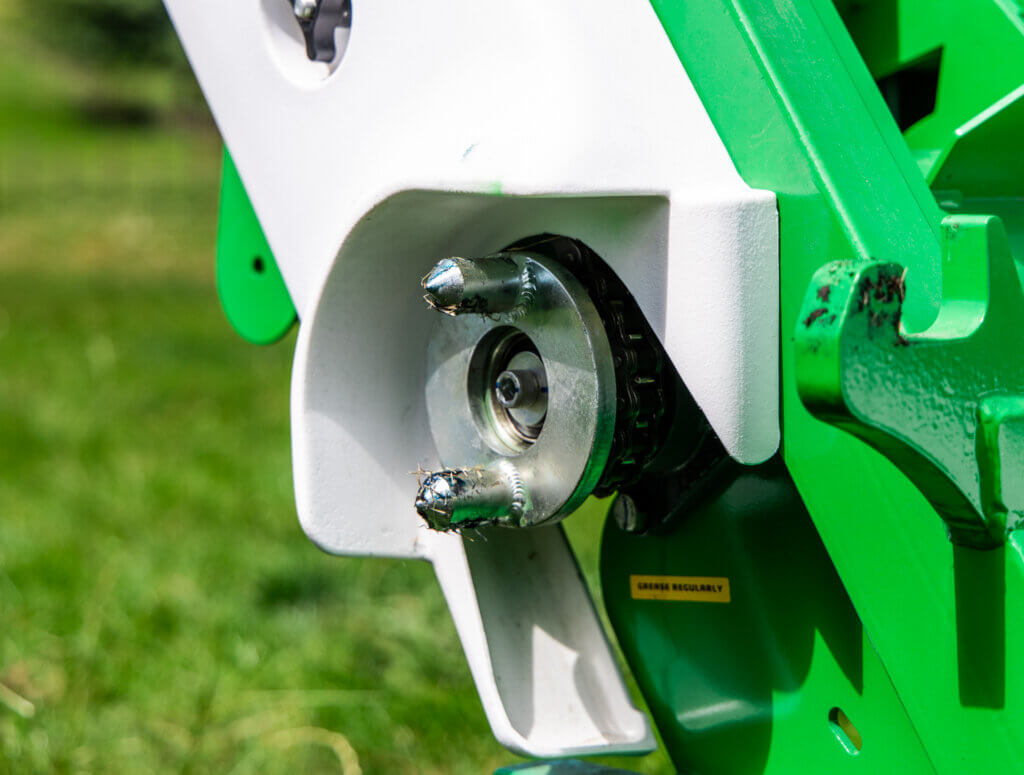

100% Bearing drive

We’ve eliminated troublesome bushes from the entire drive system, for ultra-low maintenance and to eliminate wear.

BearingDrive

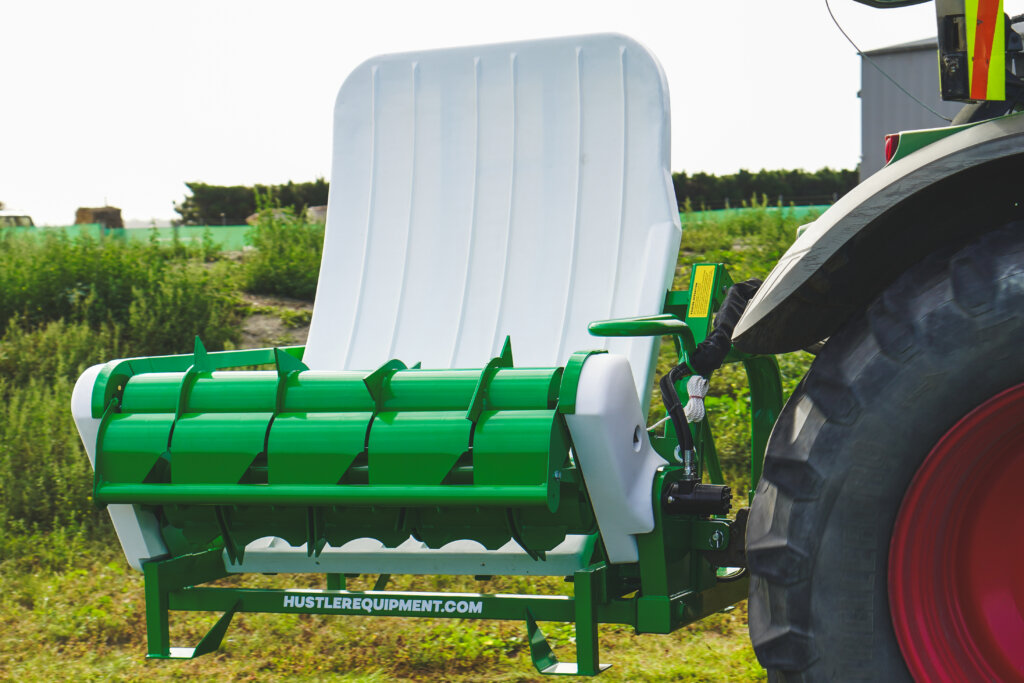

Rotomolded platform

30% slipperier than steel the rotomolded platform with ribs guides the bale and ensures all bales types can be fed with ease.

Rotomoulded Platform

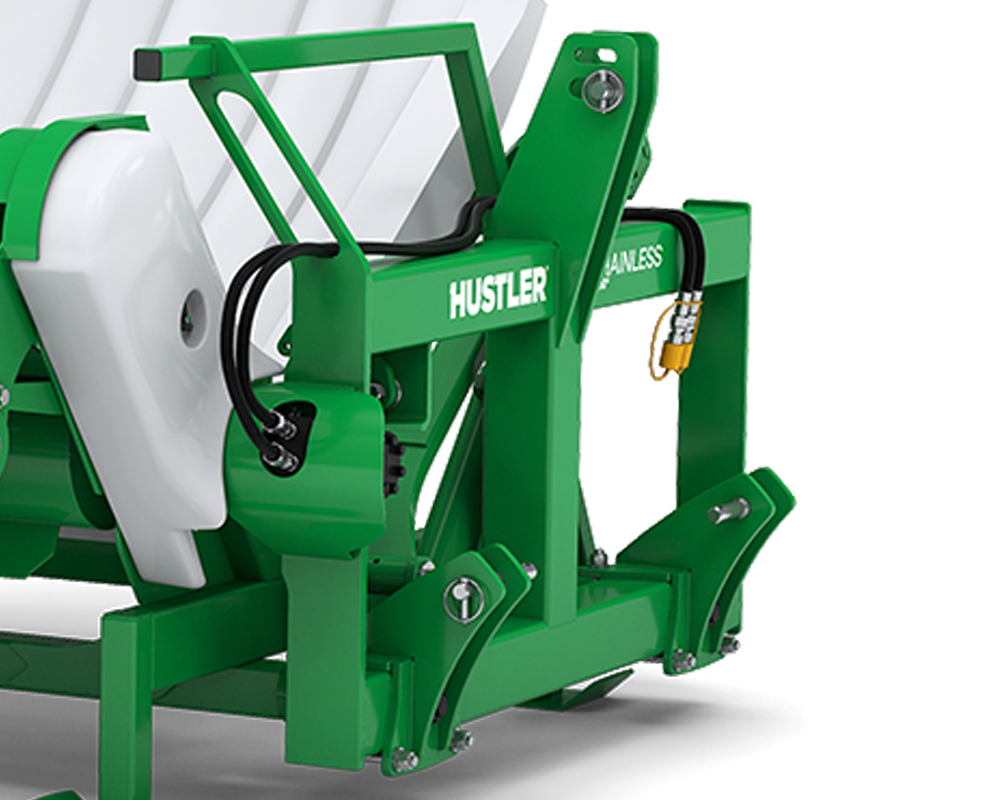

3PH and or Front Loader mounts

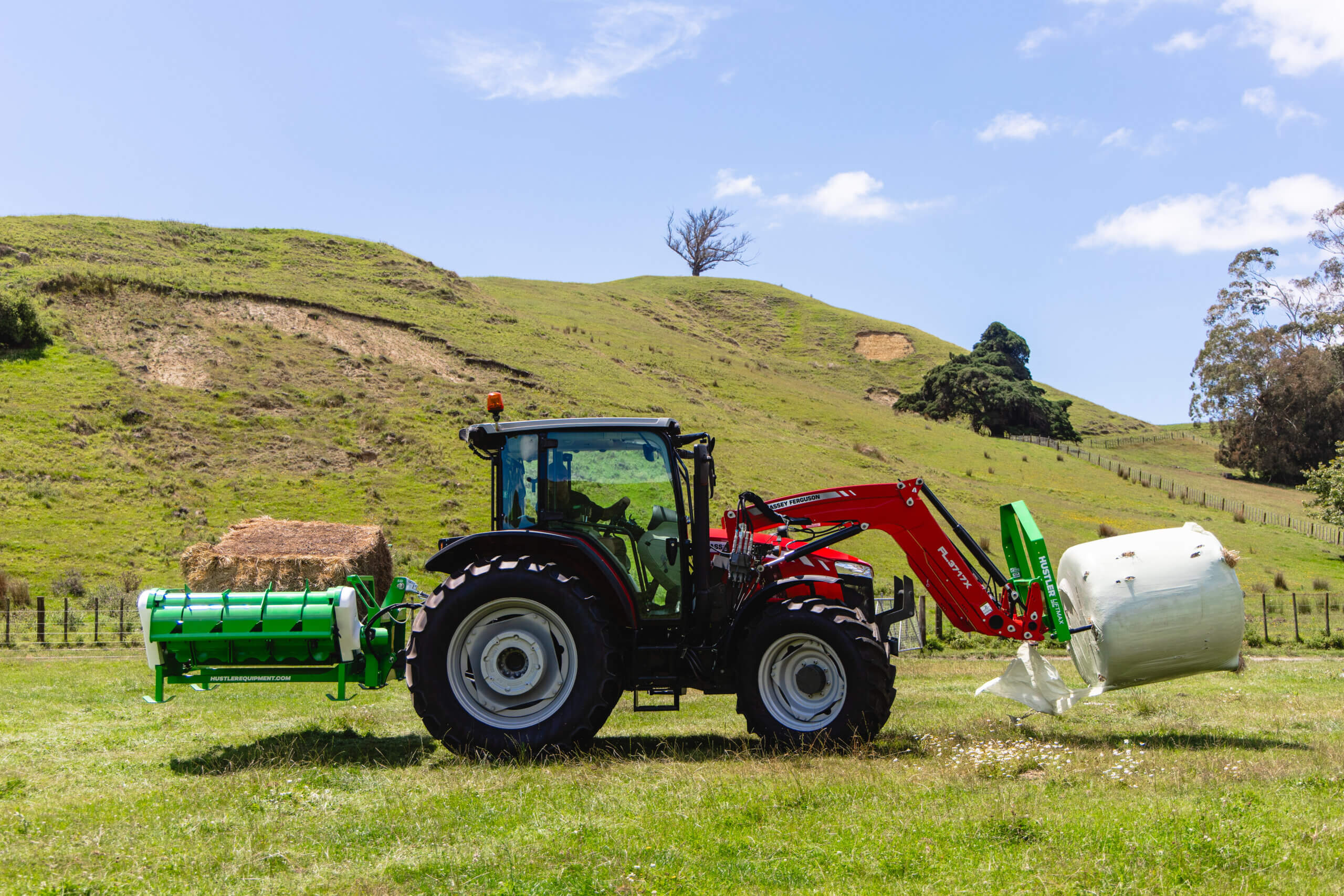

The headstock design allows for either 3PH or loader mounts to be bolted directly to the frame. This enables the feeder to be operated on a loader or telehandler. This is great for feeding into hay rings or over fences.

LoaderMounts

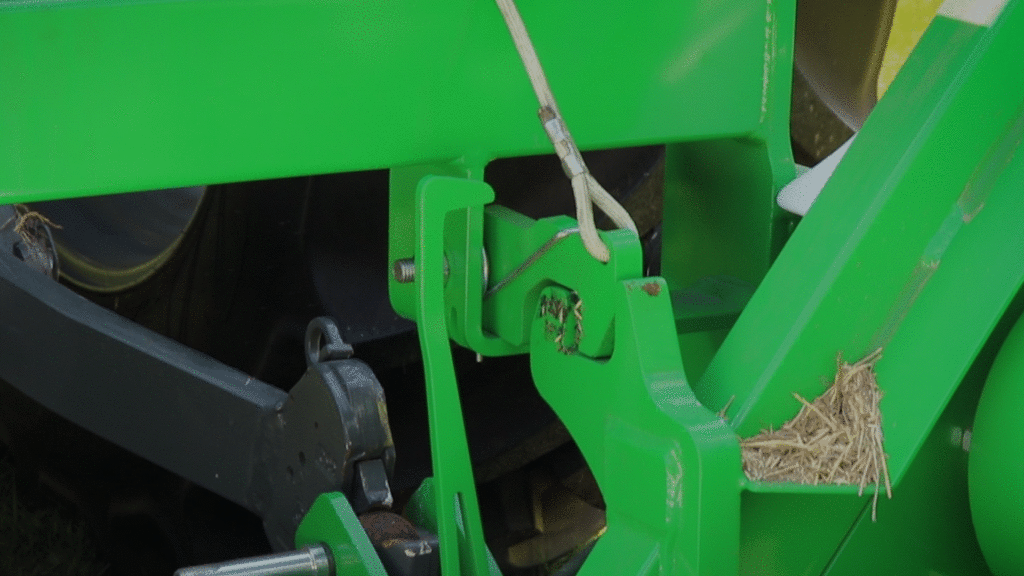

Single HD latch system

Simple, strong and easy to connect. The new single latch system streamlines the self-loading process.

Sequence 01 5

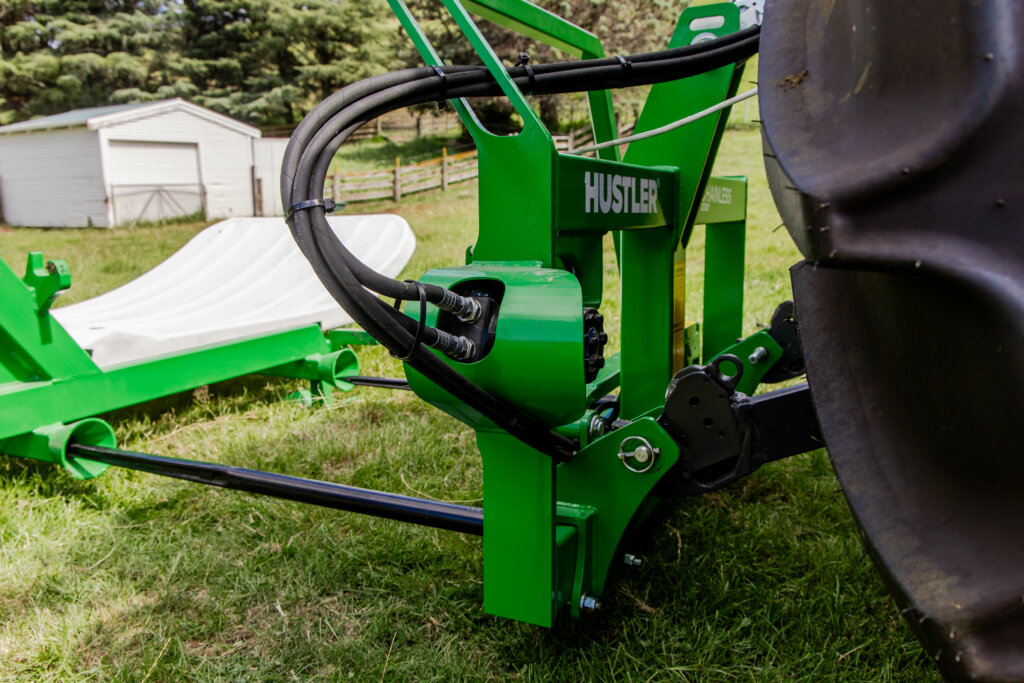

Protected hydraulic motor

The drive motor is protected from damage behind a Heavy Duty shield.

ProtectedMotor

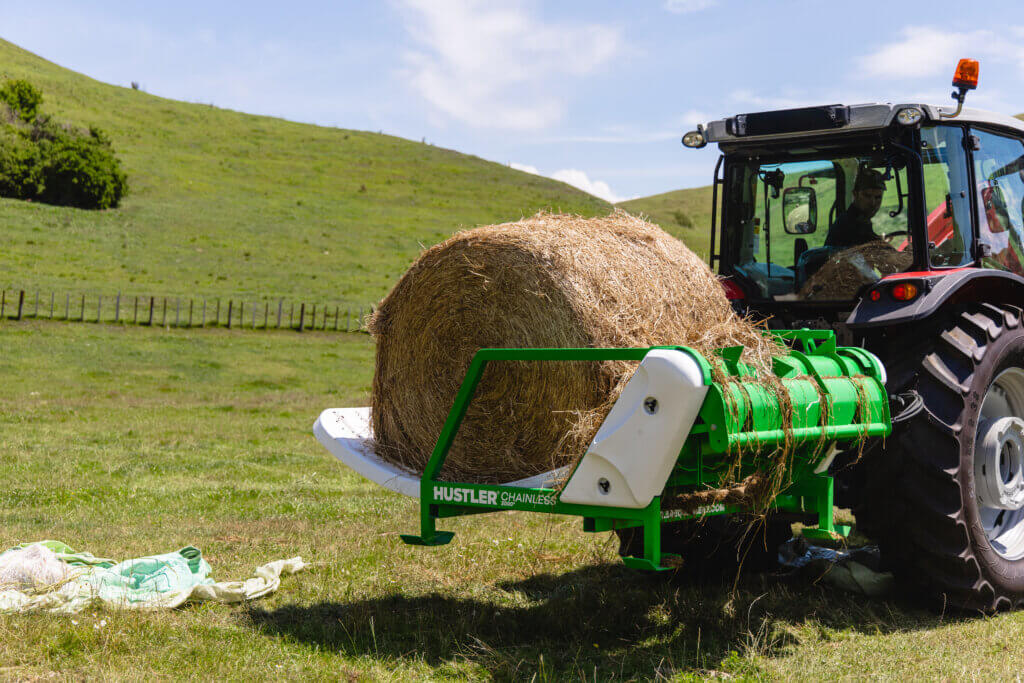

High rear fence

Makes it easy to load bales, and prevents bales from screwing off the back when operating on hilly terrain

HighRearFence

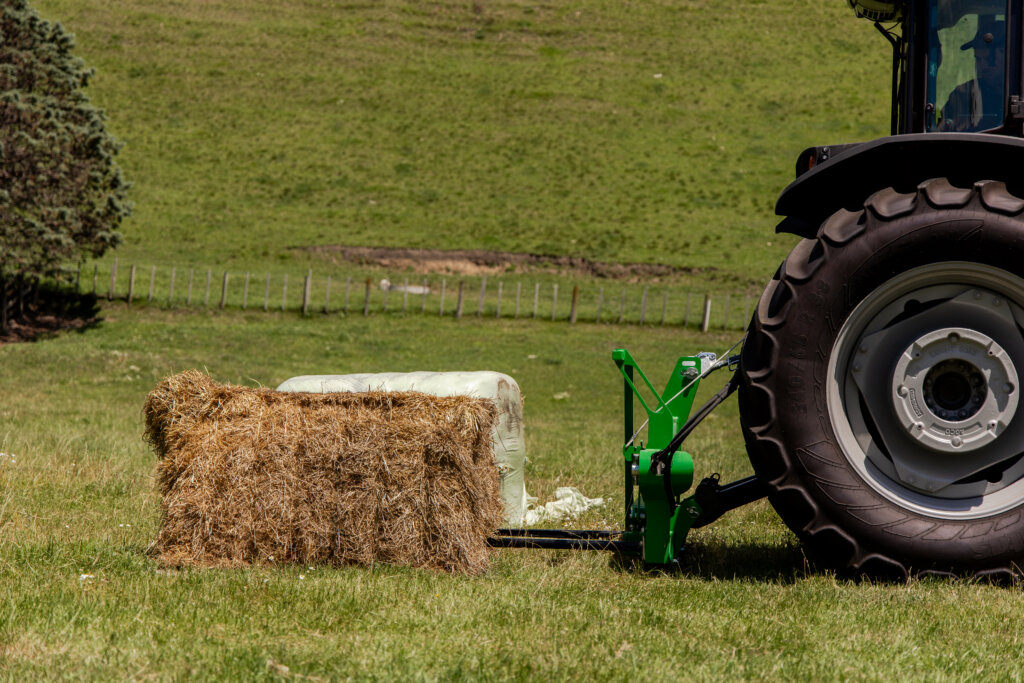

Removeable forged hay tynes

We’ve used specifically designed forged bale spears which pierce the bale rather than pushing it and are longer which reduces bale sag even with the wettest of bales – another innovation from Hustler.

IMG 2338

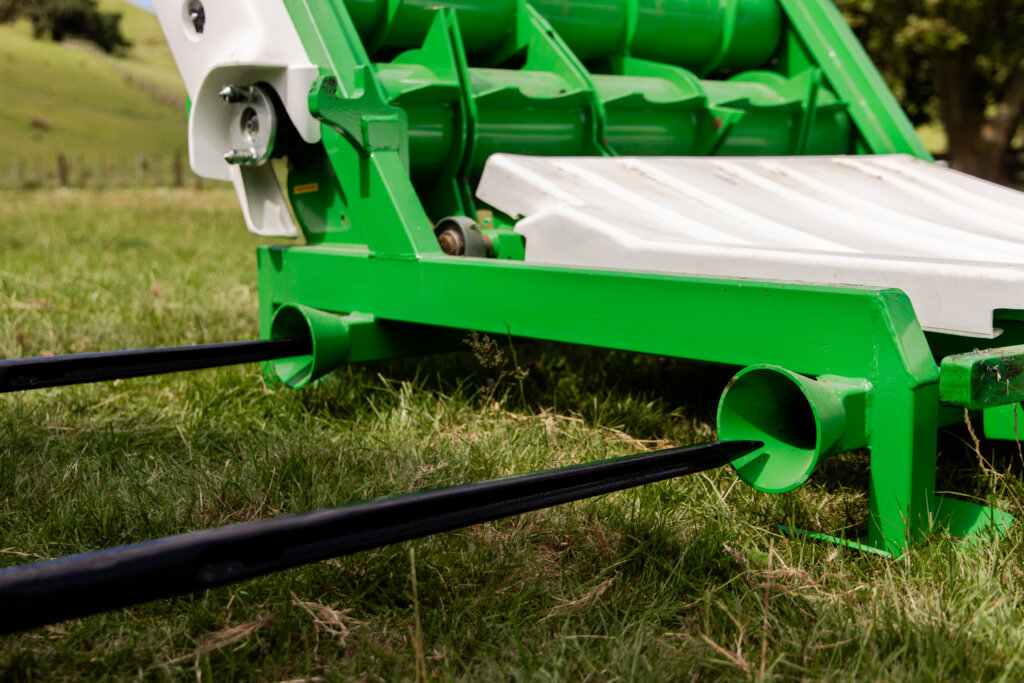

Un-equal length tynes

We’ve made one tyne longer than the other for quick and easy alignment when reconnecting the cradle. You’ll only need to line up one tyne, then back straight in.

UnEqualLengthTines

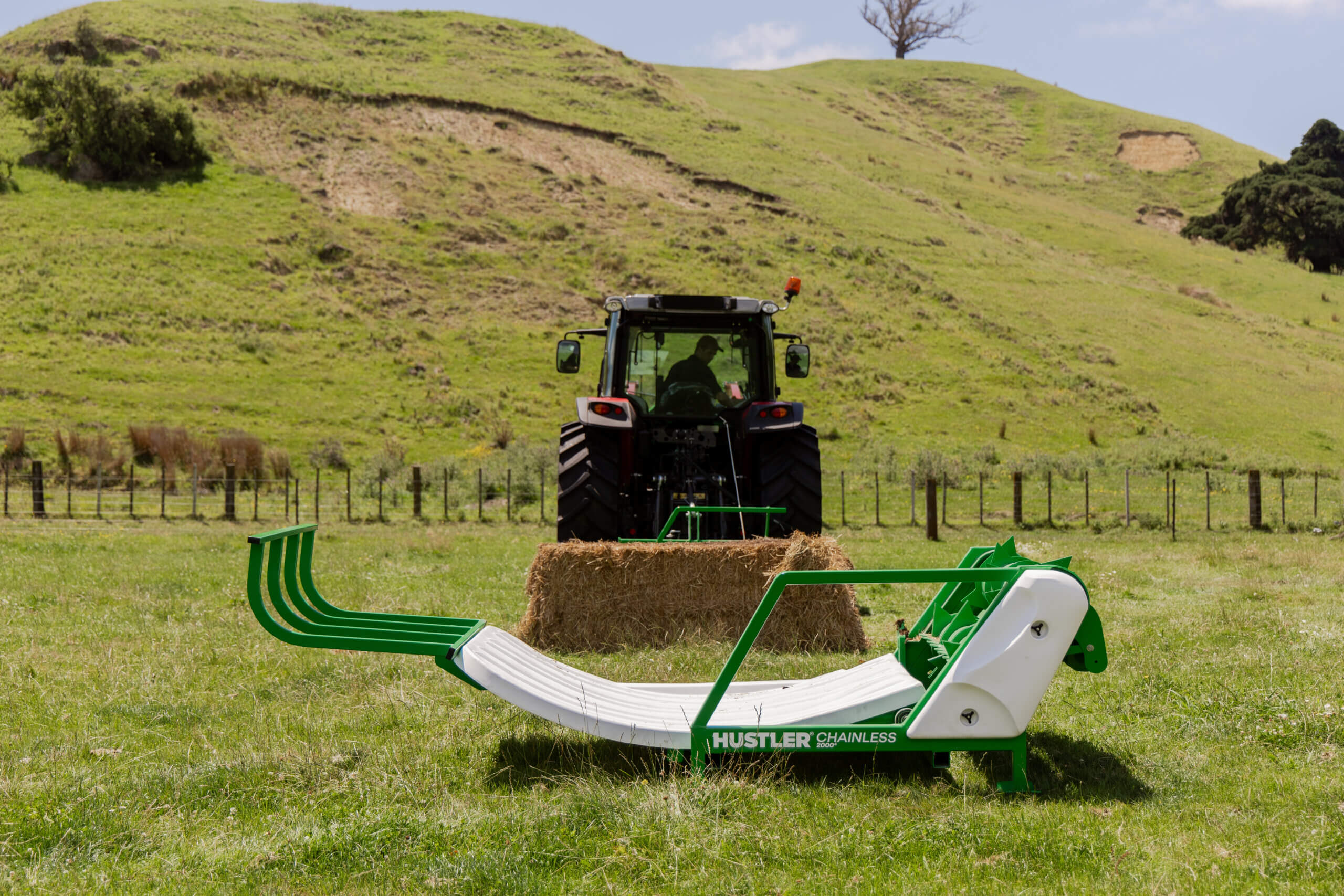

Ultra-low cradle

Our ultra-low cradle design makes it easy for loading.

UltraLow Cradle

Product Customiser

Select the product, then options and accessories to create your enquiry.

Mounted Chainless CH2000⁴ round and square bale feeder

Includes as standard equipment:

  • 3PH hitch mounts (loader optional)
  • Hydraulic hoses with Alloy hand grips
  • Front End Loader Capable
  • 5 Year No Bull Warranty
Side Chute (4ft)

Side Chute (4ft)

The Side Chute deflects the hay into a trough or bunk.

Platform Extension For Square Bales (4ft)

Platform Extension For Square Bales (4ft)

Optional platform extension available for 8’ long square bales.

Telehandler mounts BF

Telehandler mounts BF

Allows the machine to be connected to a telehandler.

Specifications

Bale size round: 4’ X 4’ – 6’ X 4’
Bale size square: 3’x3’x6’ up to 4’x4’x8’
Weight Capacity: 1000 kg | 2,204 lb
Bale Capacity: 1 bale
Unit weight: 480 kg | 1,058 lb
Hydraulics required: 2 x double-acting, 30-60 litres/min | 8-16 gal/min, 2250-3000 psi
Loading: Self-loading
Size (L x W x H): 2090 x 2048 x 1043mm | 82 x 81 x 41"
